Aggregating Data from Multiple APIs: Patterns and Pitfalls

2026-01-06 Master the art of aggregating data from multiple external APIs with proper error handling, rate limiting, caching, and response normalization strategies.

Introduction

Modern applications rarely exist in isolation. A typical dashboard might pull user data from your authentication provider, metrics from your analytics platform, inventory from your ERP system, and notifications from a third-party messaging service. Each API has its own quirks: different authentication schemes, inconsistent response formats, varying rate limits, and unpredictable availability windows.

~/notes $ asciify -i .plates/api-aggregation-patterns.pgm

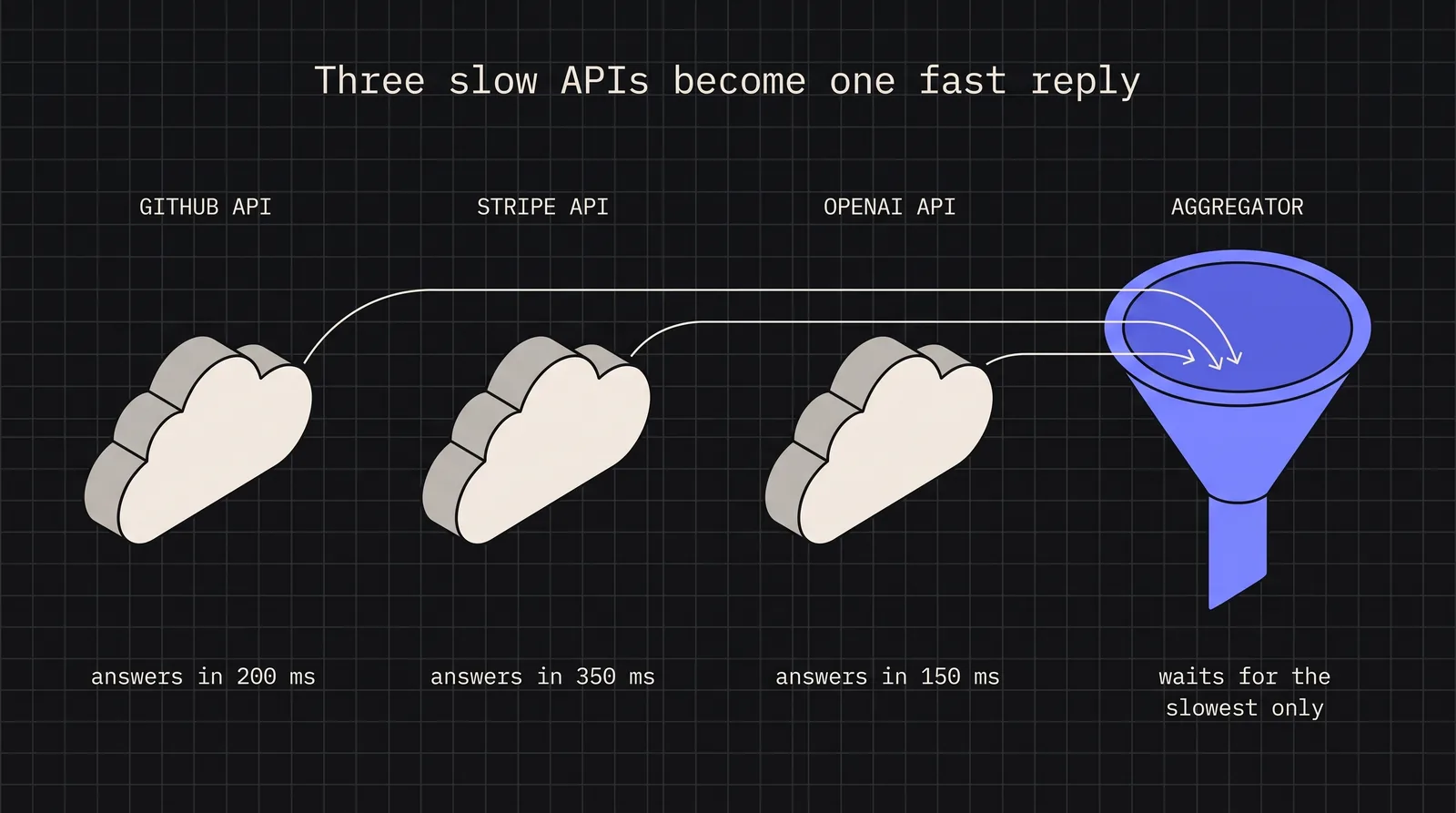

Diagram: Three slow APIs become one fast reply

~/notes $ tail -n +8 api-aggregation-patterns.md | glow -w 78

This is the multi-API aggregation challenge: how do you combine data from disparate sources into a unified, reliable response for your application? The naive approach of sequential HTTP calls quickly falls apart. One slow API blocks the entire response. One failed service crashes your page. Rate limits get exhausted because you’re making redundant requests.

In this article, we’ll explore battle-tested patterns for aggregating data from multiple APIs using Python’s async capabilities. We’ll cover concurrent fetching, rate limiting, response normalization, caching strategies, and resilience patterns like circuit breakers. By the end, you’ll have a toolkit for building aggregation services that are fast, reliable, and maintainable.

The challenges of multi-API aggregation

Before diving into solutions, let’s understand what makes API aggregation genuinely difficult:

Rate limiting across providers

Every API has rate limits, but they’re rarely consistent:

Provider	Rate Limit	Window	Penalty
GitHub API	5,000 req	per hour	403 until reset
Stripe API	100 req	per second	429 with retry-after
OpenAI API	Varies by tier	per minute	429 with exponential backoff
Twitter/X API	15 req	per 15 min	429, 15-min lockout

Aggregating across these providers means tracking multiple rate limit budgets simultaneously and gracefully degrading when any one is exhausted.

Format inconsistency

APIs speak different dialects. One returns created_at as a Unix timestamp, another as ISO 8601, a third as a human-readable string. User IDs might be integers, UUIDs, or opaque strings. Pagination uses cursors in one API and page numbers in another.

Availability variance

External APIs fail. They fail in different ways (timeouts, 5xx errors, malformed responses), at different rates, and with different recovery patterns. Your aggregation layer must handle partial failures gracefully, returning what data is available rather than failing entirely.

Async fetching with httpx

Python’s asyncio combined with httpx provides the foundation for efficient concurrent API calls. Instead of waiting for each API sequentially, we can fire requests in parallel and gather results.

import asyncio
import httpx
from typing import Any
from dataclasses import dataclass

@dataclass
class APIResponse:
    source: str
    data: dict[str, Any] | None
    error: str | None
    status_code: int | None

async def fetch_api(
    client: httpx.AsyncClient,
    name: str,
    url: str,
    headers: dict[str, str] | None = None,
    timeout: float = 10.0
) -> APIResponse:
    """Fetch from a single API with error handling."""
    try:
        response = await client.get(
            url,
            headers=headers or {},
            timeout=timeout
        )
        response.raise_for_status()
        return APIResponse(
            source=name,
            data=response.json(),
            error=None,
            status_code=response.status_code
        )
    except httpx.TimeoutException:
        return APIResponse(
            source=name,
            data=None,
            error="Request timed out",
            status_code=None
        )
    except httpx.HTTPStatusError as e:
        return APIResponse(
            source=name,
            data=None,
            error=f"HTTP {e.response.status_code}",
            status_code=e.response.status_code
        )
    except Exception as e:
        return APIResponse(
            source=name,
            data=None,
            error=str(e),
            status_code=None
        )

async def aggregate_apis(api_configs: list[dict]) -> list[APIResponse]:
    """Fetch from multiple APIs concurrently."""
    async with httpx.AsyncClient() as client:
        tasks = [
            fetch_api(
                client,
                config["name"],
                config["url"],
                config.get("headers"),
                config.get("timeout", 10.0)
            )
            for config in api_configs
        ]
        return await asyncio.gather(*tasks)

# Usage example
async def get_dashboard_data(user_id: str) -> dict:
    apis = [
        {
            "name": "user_profile",
            "url": f"https://api.auth0.com/users/{user_id}",
            "headers": {"Authorization": f"Bearer {AUTH0_TOKEN}"}
        },
        {
            "name": "analytics",
            "url": f"https://api.analytics.com/users/{user_id}/metrics",
            "headers": {"X-API-Key": ANALYTICS_KEY}
        },
        {
            "name": "notifications",
            "url": f"https://api.notify.io/v1/users/{user_id}/unread",
            "headers": {"Authorization": f"Bearer {NOTIFY_TOKEN}"},
            "timeout": 5.0  # Notifications are less critical
        }
    ]

    results = await aggregate_apis(apis)
    return {r.source: r.data for r in results if r.data}

The key insight here is that asyncio.gather() runs all requests concurrently. If your three APIs have response times of 200ms, 350ms, and 150ms, the total time is approximately 350ms (the slowest), not 700ms (the sum).

Pro Tip: Use asyncio.gather(*tasks, return_exceptions=True) to prevent one failed task from canceling others. This is essential when you want partial results.

Implementing rate limiting

A robust aggregation service needs rate limiting that works across all your API consumers. Here’s a token bucket implementation that handles multiple API rate limits:

import asyncio
import time
from dataclasses import dataclass, field
from typing import Callable, Awaitable, TypeVar

T = TypeVar('T')

@dataclass
class TokenBucket:
    """Token bucket rate limiter for a single API."""
    capacity: int
    refill_rate: float  # tokens per second
    tokens: float = field(init=False)
    last_refill: float = field(init=False)
    _lock: asyncio.Lock = field(default_factory=asyncio.Lock, repr=False)

    def __post_init__(self):
        self.tokens = float(self.capacity)
        self.last_refill = time.monotonic()

    async def acquire(self, tokens: int = 1) -> float:
        """Acquire tokens, waiting if necessary. Returns wait time."""
        async with self._lock:
            await self._refill()

            if self.tokens >= tokens:
                self.tokens -= tokens
                return 0.0

            # Calculate wait time for enough tokens
            tokens_needed = tokens - self.tokens
            wait_time = tokens_needed / self.refill_rate

            await asyncio.sleep(wait_time)
            await self._refill()
            self.tokens -= tokens
            return wait_time

    async def _refill(self):
        """Refill tokens based on elapsed time."""
        now = time.monotonic()
        elapsed = now - self.last_refill
        self.tokens = min(
            self.capacity,
            self.tokens + elapsed * self.refill_rate
        )
        self.last_refill = now

class MultiAPIRateLimiter:
    """Manages rate limits across multiple APIs."""

    def __init__(self):
        self.limiters: dict[str, TokenBucket] = {}

    def register_api(
        self,
        name: str,
        requests_per_window: int,
        window_seconds: float
    ):
        """Register rate limit for an API."""
        refill_rate = requests_per_window / window_seconds
        self.limiters[name] = TokenBucket(
            capacity=requests_per_window,
            refill_rate=refill_rate
        )

    async def execute(
        self,
        api_name: str,
        func: Callable[[], Awaitable[T]]
    ) -> T:
        """Execute a function with rate limiting."""
        if api_name not in self.limiters:
            raise ValueError(f"Unknown API: {api_name}")

        await self.limiters[api_name].acquire()
        return await func()

# Global rate limiter instance
rate_limiter = MultiAPIRateLimiter()

# Register your APIs at startup
rate_limiter.register_api("github", requests_per_window=5000, window_seconds=3600)
rate_limiter.register_api("stripe", requests_per_window=100, window_seconds=1)
rate_limiter.register_api("openai", requests_per_window=60, window_seconds=60)

This implementation ensures you never exceed the rate limits of any provider, automatically queuing requests when limits are approached.

Warning: In distributed systems, a single-process rate limiter isn’t sufficient. Use Redis-based rate limiting (covered in the caching section) for production deployments across multiple workers.

Response normalization

Raw API responses are inconsistent by nature. A normalization layer transforms diverse formats into a consistent internal schema:

from datetime import datetime
from typing import Any, Protocol
from abc import abstractmethod

class ResponseNormalizer(Protocol):
    """Protocol for API response normalizers."""

    @abstractmethod
    def normalize(self, raw_response: dict[str, Any]) -> dict[str, Any]:
        """Transform raw API response to normalized format."""
        ...

class GitHubUserNormalizer:
    """Normalize GitHub user API responses."""

    def normalize(self, raw: dict[str, Any]) -> dict[str, Any]:
        return {
            "id": str(raw.get("id")),
            "username": raw.get("login"),
            "display_name": raw.get("name"),
            "email": raw.get("email"),
            "avatar_url": raw.get("avatar_url"),
            "created_at": self._parse_timestamp(raw.get("created_at")),
            "source": "github"
        }

    def _parse_timestamp(self, ts: str | None) -> datetime | None:
        if not ts:
            return None
        return datetime.fromisoformat(ts.replace("Z", "+00:00"))

class StripeCustomerNormalizer:
    """Normalize Stripe customer API responses."""

    def normalize(self, raw: dict[str, Any]) -> dict[str, Any]:
        return {
            "id": raw.get("id"),
            "username": raw.get("email", "").split("@")[0],
            "display_name": raw.get("name"),
            "email": raw.get("email"),
            "avatar_url": None,  # Stripe doesn't have avatars
            "created_at": self._parse_timestamp(raw.get("created")),
            "source": "stripe"
        }

    def _parse_timestamp(self, ts: int | None) -> datetime | None:
        if not ts:
            return None
        return datetime.fromtimestamp(ts)

class Auth0UserNormalizer:
    """Normalize Auth0 user API responses."""

    def normalize(self, raw: dict[str, Any]) -> dict[str, Any]:
        return {
            "id": raw.get("user_id"),
            "username": raw.get("nickname") or raw.get("email", "").split("@")[0],
            "display_name": raw.get("name"),
            "email": raw.get("email"),
            "avatar_url": raw.get("picture"),
            "created_at": self._parse_timestamp(raw.get("created_at")),
            "source": "auth0"
        }

    def _parse_timestamp(self, ts: str | None) -> datetime | None:
        if not ts:
            return None
        return datetime.fromisoformat(ts.replace("Z", "+00:00"))

# Registry of normalizers
NORMALIZERS: dict[str, ResponseNormalizer] = {
    "github": GitHubUserNormalizer(),
    "stripe": StripeCustomerNormalizer(),
    "auth0": Auth0UserNormalizer(),
}

def normalize_response(source: str, raw_data: dict[str, Any]) -> dict[str, Any]:
    """Normalize a response using the appropriate normalizer."""
    normalizer = NORMALIZERS.get(source)
    if not normalizer:
        raise ValueError(f"No normalizer for source: {source}")
    return normalizer.normalize(raw_data)

The Protocol-based approach allows easy testing and extension. When you add a new API, you just implement the normalizer interface and register it.

Caching strategies with Redis

API responses often don’t change frequently. Caching reduces latency, decreases API costs, and provides a fallback when external services are unavailable:

import json
import hashlib
from typing import Any, Callable, Awaitable, TypeVar
from datetime import timedelta
import redis.asyncio as redis

T = TypeVar('T')

class APICache:
    """Redis-based cache for API responses."""

    def __init__(self, redis_url: str = "redis://localhost:6379"):
        self.redis = redis.from_url(redis_url, decode_responses=True)

    def _cache_key(self, namespace: str, identifier: str) -> str:
        """Generate a consistent cache key."""
        hash_input = f"{namespace}:{identifier}"
        return f"api_cache:{hashlib.sha256(hash_input.encode()).hexdigest()[:16]}"

    async def get(self, namespace: str, identifier: str) -> dict | None:
        """Retrieve cached response."""
        key = self._cache_key(namespace, identifier)
        data = await self.redis.get(key)
        if data:
            return json.loads(data)
        return None

    async def set(
        self,
        namespace: str,
        identifier: str,
        data: dict,
        ttl: timedelta = timedelta(minutes=5)
    ):
        """Cache a response with TTL."""
        key = self._cache_key(namespace, identifier)
        await self.redis.setex(
            key,
            int(ttl.total_seconds()),
            json.dumps(data)
        )

    async def get_or_fetch(
        self,
        namespace: str,
        identifier: str,
        fetch_func: Callable[[], Awaitable[dict]],
        ttl: timedelta = timedelta(minutes=5),
        stale_ttl: timedelta = timedelta(hours=1)
    ) -> dict:
        """Get from cache or fetch, with stale-while-revalidate support."""
        key = self._cache_key(namespace, identifier)
        stale_key = f"{key}:stale"

        # Try fresh cache first
        cached = await self.redis.get(key)
        if cached:
            return json.loads(cached)

        # Try fetching fresh data
        try:
            data = await fetch_func()
            # Store fresh and stale copies
            await self.redis.setex(key, int(ttl.total_seconds()), json.dumps(data))
            await self.redis.setex(stale_key, int(stale_ttl.total_seconds()), json.dumps(data))
            return data
        except Exception as e:
            # Fall back to stale data if fetch fails
            stale = await self.redis.get(stale_key)
            if stale:
                return json.loads(stale)
            raise e

    async def invalidate(self, namespace: str, identifier: str):
        """Invalidate cached data."""
        key = self._cache_key(namespace, identifier)
        await self.redis.delete(key, f"{key}:stale")

# Usage example
cache = APICache()

async def get_user_profile(user_id: str) -> dict:
    """Get user profile with caching."""
    return await cache.get_or_fetch(
        namespace="user_profile",
        identifier=user_id,
        fetch_func=lambda: fetch_user_from_api(user_id),
        ttl=timedelta(minutes=5),
        stale_ttl=timedelta(hours=24)
    )

The stale-while-revalidate pattern is particularly powerful for aggregation services. When your cache expires but the external API is down, you can serve stale data rather than failing entirely.

Note: Set different TTLs based on data volatility. User profiles might cache for hours, while stock prices should cache for seconds.

Circuit breaker pattern

When an external API fails repeatedly, continuing to call it wastes resources and slows down your aggregation. The circuit breaker pattern provides automatic protection:

import asyncio
import time
from enum import Enum
from dataclasses import dataclass, field
from typing import Callable, Awaitable, TypeVar

T = TypeVar('T')

class CircuitState(Enum):
    CLOSED = "closed"      # Normal operation
    OPEN = "open"          # Failing, reject requests
    HALF_OPEN = "half_open"  # Testing if service recovered

@dataclass
class CircuitBreaker:
    """Circuit breaker for external API calls."""
    name: str
    failure_threshold: int = 5
    recovery_timeout: float = 30.0  # seconds
    half_open_max_calls: int = 3

    state: CircuitState = field(default=CircuitState.CLOSED, init=False)
    failure_count: int = field(default=0, init=False)
    success_count: int = field(default=0, init=False)
    last_failure_time: float = field(default=0.0, init=False)
    _lock: asyncio.Lock = field(default_factory=asyncio.Lock, repr=False)

    async def execute(
        self,
        func: Callable[[], Awaitable[T]],
        fallback: Callable[[], Awaitable[T]] | None = None
    ) -> T:
        """Execute function with circuit breaker protection."""
        async with self._lock:
            await self._check_state()

            if self.state == CircuitState.OPEN:
                if fallback:
                    return await fallback()
                raise CircuitOpenError(f"Circuit {self.name} is open")

        try:
            result = await func()
            await self._on_success()
            return result
        except Exception as e:
            await self._on_failure()
            if fallback:
                return await fallback()
            raise

    async def _check_state(self):
        """Check if circuit should transition states."""
        if self.state == CircuitState.OPEN:
            elapsed = time.monotonic() - self.last_failure_time
            if elapsed >= self.recovery_timeout:
                self.state = CircuitState.HALF_OPEN
                self.success_count = 0

    async def _on_success(self):
        """Handle successful call."""
        async with self._lock:
            if self.state == CircuitState.HALF_OPEN:
                self.success_count += 1
                if self.success_count >= self.half_open_max_calls:
                    self.state = CircuitState.CLOSED
                    self.failure_count = 0
            elif self.state == CircuitState.CLOSED:
                self.failure_count = 0

    async def _on_failure(self):
        """Handle failed call."""
        async with self._lock:
            self.failure_count += 1
            self.last_failure_time = time.monotonic()

            if self.state == CircuitState.HALF_OPEN:
                self.state = CircuitState.OPEN
            elif self.failure_count >= self.failure_threshold:
                self.state = CircuitState.OPEN

class CircuitOpenError(Exception):
    """Raised when circuit is open."""
    pass

# Circuit breakers for each external API
circuits: dict[str, CircuitBreaker] = {
    "github": CircuitBreaker("github", failure_threshold=5, recovery_timeout=60),
    "stripe": CircuitBreaker("stripe", failure_threshold=3, recovery_timeout=30),
    "analytics": CircuitBreaker("analytics", failure_threshold=10, recovery_timeout=120),
}

# Usage with fallback
async def get_analytics_with_circuit(user_id: str) -> dict:
    """Fetch analytics with circuit breaker and fallback."""
    return await circuits["analytics"].execute(
        func=lambda: fetch_analytics_api(user_id),
        fallback=lambda: cache.get("analytics", user_id) or {"metrics": []}
    )

The circuit breaker has three states:

Closed: Normal operation, requests pass through
Open: After threshold failures, all requests are rejected immediately
Half-Open: After recovery timeout, limited requests test if service recovered

Monitoring and alerting

An aggregation service without monitoring is a time bomb. Track the health of your external API dependencies:

from dataclasses import dataclass, field
from collections import defaultdict
import structlog

logger = structlog.get_logger()

@dataclass
class APIMetrics:
    """Metrics for a single API."""
    total_requests: int = 0
    successful_requests: int = 0
    failed_requests: int = 0
    total_latency_ms: float = 0.0

    @property
    def success_rate(self) -> float:
        if self.total_requests == 0:
            return 1.0
        return self.successful_requests / self.total_requests

class AggregationMonitor:
    """Monitor for API aggregation health."""

    def __init__(self, alert_threshold: float = 0.9):
        self.metrics: dict[str, APIMetrics] = defaultdict(APIMetrics)
        self.alert_threshold = alert_threshold

    def record_request(self, api_name: str, success: bool, latency_ms: float):
        """Record a request outcome."""
        m = self.metrics[api_name]
        m.total_requests += 1

        if success:
            m.successful_requests += 1
            m.total_latency_ms += latency_ms
        else:
            m.failed_requests += 1

        if m.total_requests >= 10 and m.success_rate < self.alert_threshold:
            logger.warning("api_degradation", api=api_name, rate=m.success_rate)

    def get_health_report(self) -> dict:
        """Generate health report for all APIs."""
        return {
            name: {
                "success_rate": f"{m.success_rate:.2%}",
                "total_requests": m.total_requests,
                "status": "healthy" if m.success_rate >= self.alert_threshold else "degraded"
            }
            for name, m in self.metrics.items()
        }

# Global monitor
monitor = AggregationMonitor(alert_threshold=0.95)

Integrate this with your observability stack (Prometheus, Datadog) to track trends and alert on sustained degradation.

Conclusion

Building a robust API aggregation layer requires addressing multiple concerns simultaneously: concurrency for performance, rate limiting for compliance, normalization for consistency, caching for efficiency, circuit breakers for resilience, and monitoring for visibility.

Key takeaways:

Use async/await with httpx or aiohttp for concurrent fetching - sequential calls don’t scale
Implement per-API rate limiting using token bucket or leaky bucket algorithms
Normalize responses early to isolate format differences from business logic
Cache aggressively with stale-while-revalidate for resilience during outages
Deploy circuit breakers to fail fast and protect against cascading failures
Monitor everything - you can’t fix what you can’t see

The patterns in this article form the foundation of any serious data aggregation service. Start with the basics (async fetching, error handling), then layer on caching and circuit breakers as your reliability requirements grow. The goal isn’t to eliminate failures - external APIs will always fail eventually - but to degrade gracefully and recover automatically.
