Image Storage Architecture with Supabase

// Supabase bucket configuration options
interface BucketConfig {
  id: string;           // Unique bucket name (no spaces, lowercase)
  public: boolean;      // Whether objects are publicly accessible
  allowedMimeTypes?: string[];  // Restrict file types
  fileSizeLimit?: number;       // Max file size in bytes
}

// Example bucket configurations
const buckets = {
  avatars: {
    id: 'avatars',
    public: true,        // Avatars are publicly viewable
    allowedMimeTypes: ['image/jpeg', 'image/png', 'image/webp'],
    fileSizeLimit: 2 * 1024 * 1024  // 2MB
  },
  documents: {
    id: 'documents',
    public: false,       // Documents require authentication
    allowedMimeTypes: ['application/pdf', 'image/*'],
    fileSizeLimit: 10 * 1024 * 1024  // 10MB
  },
  media: {
    id: 'media',
    public: false,       // Private by default, signed URLs for access
    fileSizeLimit: 50 * 1024 * 1024  // 50MB
  }
};

import { createClient } from '@supabase/supabase-js';

// Server-side client with elevated privileges
// NEVER expose SUPABASE_SERVICE_ROLE_KEY to the client
const supabaseAdmin = createClient(
  process.env.SUPABASE_URL!,
  process.env.SUPABASE_SERVICE_ROLE_KEY!,
  {
    auth: {
      autoRefreshToken: false,
      persistSession: false
    }
  }
);

export { supabaseAdmin };

import { createClient } from '@supabase/supabase-js';

// Client-side with RLS enforcement
const supabase = createClient(
  process.env.NEXT_PUBLIC_SUPABASE_URL!,
  process.env.NEXT_PUBLIC_SUPABASE_ANON_KEY!
);

export { supabase };

import { supabaseAdmin } from '../lib/supabase-admin';
import { v4 as uuidv4 } from 'uuid';
import path from 'path';

interface UploadOptions {
  bucket: string;
  userId: string;
  file: Buffer;
  fileName: string;
  contentType: string;
  folder?: string;
}

interface UploadResult {
  path: string;
  publicUrl: string | null;
  signedUrl?: string;
}

export class StorageService {
  /**
   * Upload a file with structured path and collision prevention
   */
  async uploadFile(options: UploadOptions): Promise<UploadResult> {
    const { bucket, userId, file, fileName, contentType, folder = 'uploads' } = options;

    // Generate unique filename to prevent collisions
    const ext = path.extname(fileName);
    const baseName = path.basename(fileName, ext);
    const uniqueId = uuidv4().slice(0, 8);
    const safeFileName = `${this.sanitizeFileName(baseName)}-${uniqueId}${ext}`;

    // Structure: userId/folder/YYYY/MM/filename
    const now = new Date();
    const year = now.getFullYear();
    const month = String(now.getMonth() + 1).padStart(2, '0');
    const filePath = `${userId}/${folder}/${year}/${month}/${safeFileName}`;

    // Upload with proper content type
    const { data, error } = await supabaseAdmin.storage
      .from(bucket)
      .upload(filePath, file, {
        contentType,
        cacheControl: '3600',  // 1 hour cache
        upsert: false          // Fail if exists (shouldn't with UUID)
      });

    if (error) {
      throw new Error(`Upload failed: ${error.message}`);
    }

    // Get public URL if bucket is public
    const { data: urlData } = supabaseAdmin.storage
      .from(bucket)
      .getPublicUrl(data.path);

    return {
      path: data.path,
      publicUrl: urlData.publicUrl
    };
  }

  /**
   * Generate a signed URL for private file access
   */
  async getSignedUrl(bucket: string, path: string, expiresIn = 3600): Promise<string> {
    const { data, error } = await supabaseAdmin.storage
      .from(bucket)
      .createSignedUrl(path, expiresIn);

    if (error) {
      throw new Error(`Failed to generate signed URL: ${error.message}`);
    }

    return data.signedUrl;
  }

  /**
   * Delete a file (with ownership verification)
   */
  async deleteFile(bucket: string, path: string, userId: string): Promise<void> {
    // Verify the path belongs to this user
    if (!path.startsWith(`${userId}/`)) {
      throw new Error('Unauthorized: Cannot delete files owned by other users');
    }

    const { error } = await supabaseAdmin.storage
      .from(bucket)
      .remove([path]);

    if (error) {
      throw new Error(`Delete failed: ${error.message}`);
    }
  }

  /**
   * Sanitize filename for safe storage
   */
  private sanitizeFileName(name: string): string {
    return name
      .toLowerCase()
      .replace(/[^a-z0-9]/g, '-')
      .replace(/-+/g, '-')
      .replace(/^-|-$/g, '')
      .slice(0, 50);
  }
}

export const storageService = new StorageService();

import express from 'express';
import multer from 'multer';
import { storageService } from '../services/storage-service';
import { validateJwt } from '../middleware/auth';

const router = express.Router();

// Configure multer for memory storage
const upload = multer({
  storage: multer.memoryStorage(),
  limits: {
    fileSize: 10 * 1024 * 1024  // 10MB limit
  },
  fileFilter: (req, file, cb) => {
    const allowedTypes = ['image/jpeg', 'image/png', 'image/webp', 'application/pdf'];
    if (allowedTypes.includes(file.mimetype)) {
      cb(null, true);
    } else {
      cb(new Error(`Invalid file type: ${file.mimetype}`));
    }
  }
});

router.post('/upload', validateJwt, upload.single('file'), async (req, res) => {
  try {
    if (!req.file) {
      return res.status(400).json({ error: 'No file provided' });
    }

    const userId = req.auth?.sub;
    if (!userId) {
      return res.status(401).json({ error: 'Unauthorized' });
    }

    const result = await storageService.uploadFile({
      bucket: 'media',
      userId,
      file: req.file.buffer,
      fileName: req.file.originalname,
      contentType: req.file.mimetype,
      folder: req.body.folder || 'uploads'
    });

    res.json({
      success: true,
      path: result.path,
      url: result.publicUrl
    });
  } catch (error) {
    console.error('Upload error:', error);
    res.status(500).json({ error: 'Upload failed' });
  }
});

export default router;

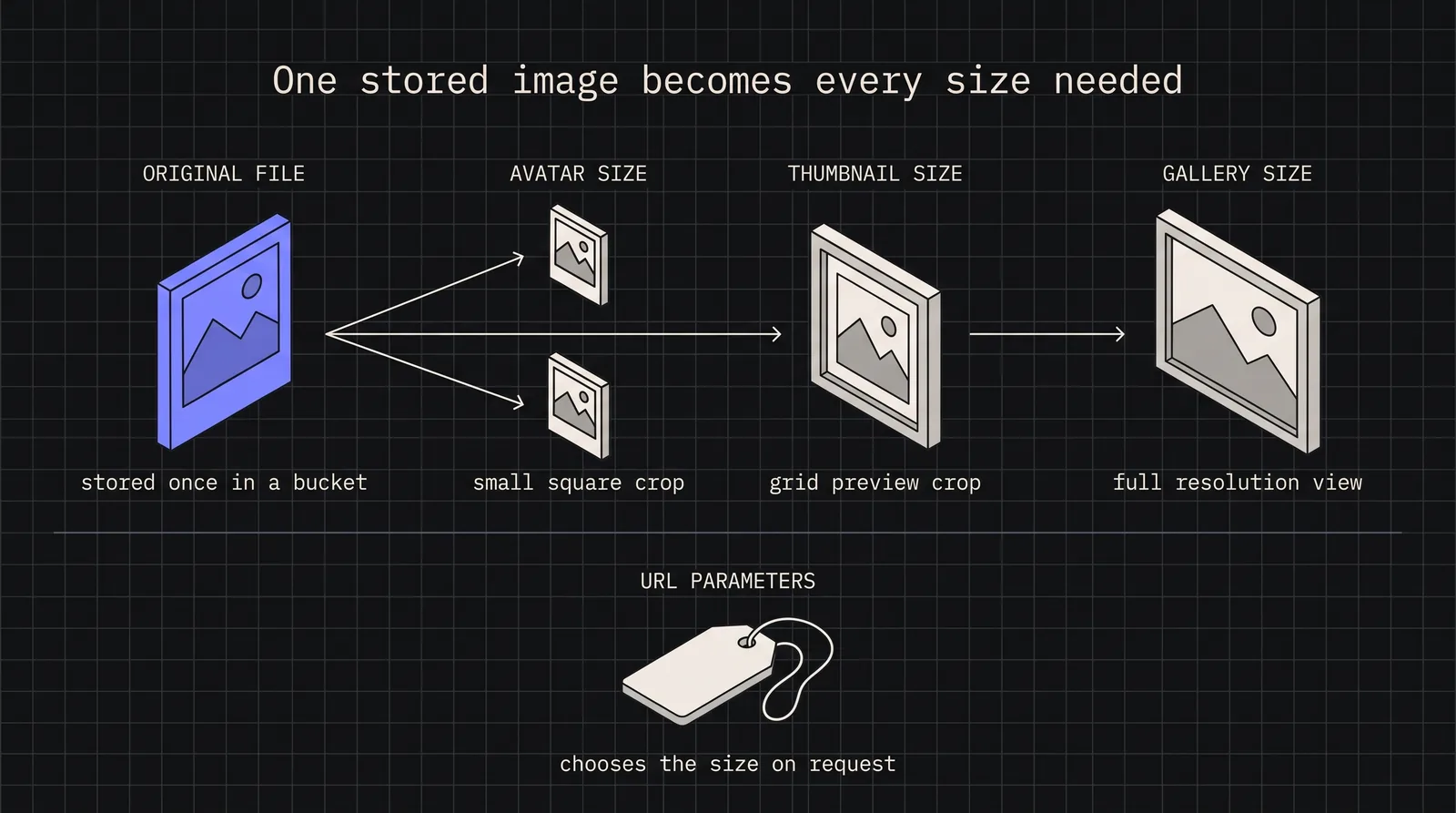

interface TransformOptions {
  width?: number;
  height?: number;
  resize?: 'cover' | 'contain' | 'fill';
  quality?: number;  // 1-100
  format?: 'origin' | 'webp';
}

export function getTransformedUrl(
  publicUrl: string,
  options: TransformOptions
): string {
  const url = new URL(publicUrl);

  // Transform endpoint is at /render/image
  const pathParts = url.pathname.split('/storage/v1/object/public/');
  if (pathParts.length !== 2) {
    throw new Error('Invalid storage URL');
  }

  const bucketAndPath = pathParts[1];
  url.pathname = `/storage/v1/render/image/public/${bucketAndPath}`;

  // Add transformation parameters
  if (options.width) url.searchParams.set('width', options.width.toString());
  if (options.height) url.searchParams.set('height', options.height.toString());
  if (options.resize) url.searchParams.set('resize', options.resize);
  if (options.quality) url.searchParams.set('quality', options.quality.toString());
  if (options.format) url.searchParams.set('format', options.format);

  return url.toString();
}

// Usage examples
const originalUrl = 'https://project.supabase.co/storage/v1/object/public/avatars/user123/profile.webp';

// Thumbnail: 150x150 cover crop
const thumbnail = getTransformedUrl(originalUrl, {
  width: 150,
  height: 150,
  resize: 'cover'
});

// Responsive: 800px wide, auto height, WebP format
const responsive = getTransformedUrl(originalUrl, {
  width: 800,
  resize: 'contain',
  format: 'webp',
  quality: 80
});

export const IMAGE_PRESETS = {
  avatar: {
    small: { width: 48, height: 48, resize: 'cover' as const },
    medium: { width: 96, height: 96, resize: 'cover' as const },
    large: { width: 256, height: 256, resize: 'cover' as const }
  },
  thumbnail: {
    grid: { width: 300, height: 200, resize: 'cover' as const, quality: 75 },
    list: { width: 120, height: 80, resize: 'cover' as const, quality: 75 }
  },
  gallery: {
    preview: { width: 800, resize: 'contain' as const, format: 'webp' as const },
    full: { width: 1920, resize: 'contain' as const, quality: 90 }
  }
} as const;

// Helper to apply preset
export function applyPreset(
  url: string,
  category: keyof typeof IMAGE_PRESETS,
  size: string
): string {
  const preset = (IMAGE_PRESETS[category] as Record<string, TransformOptions>)[size];
  if (!preset) {
    throw new Error(`Unknown preset: ${category}.${size}`);
  }
  return getTransformedUrl(url, preset);
}

-- Policy: Users can upload to their own folder
CREATE POLICY "Users can upload own files"
ON storage.objects
FOR INSERT
TO authenticated
WITH CHECK (
  bucket_id = 'media'
  AND (storage.foldername(name))[1] = auth.uid()::text
);

-- Policy: Users can view their own files
CREATE POLICY "Users can view own files"
ON storage.objects
FOR SELECT
TO authenticated
USING (
  bucket_id = 'media'
  AND (storage.foldername(name))[1] = auth.uid()::text
);

-- Policy: Users can delete their own files
CREATE POLICY "Users can delete own files"
ON storage.objects
FOR DELETE
TO authenticated
USING (
  bucket_id = 'media'
  AND (storage.foldername(name))[1] = auth.uid()::text
);

-- Policy: Public avatar access (for public bucket)
CREATE POLICY "Public avatar access"
ON storage.objects
FOR SELECT
TO public
USING (bucket_id = 'avatars');

-- Policy: Authenticated users upload avatars to own folder
CREATE POLICY "Users upload own avatar"
ON storage.objects
FOR INSERT
TO authenticated
WITH CHECK (
  bucket_id = 'avatars'
  AND (storage.foldername(name))[1] = auth.uid()::text
);

-- Policy: Team members can access team files
-- Requires a teams_members junction table
CREATE POLICY "Team members access team files"
ON storage.objects
FOR SELECT
TO authenticated
USING (
  bucket_id = 'team-assets'
  AND EXISTS (
    SELECT 1 FROM public.team_members
    WHERE team_members.team_id = (storage.foldername(name))[1]::uuid
    AND team_members.user_id = auth.uid()
  )
);

-- Policy: Only admins can upload to shared folder
CREATE POLICY "Admins upload to shared"
ON storage.objects
FOR INSERT
TO authenticated
WITH CHECK (
  bucket_id = 'media'
  AND (storage.foldername(name))[1] = 'shared'
  AND EXISTS (
    SELECT 1 FROM public.profiles
    WHERE profiles.id = auth.uid()
    AND profiles.role = 'admin'
  )
);

-- Policy: File size limit enforcement via metadata
-- Note: Actual size limit is set on bucket, this adds conditional logic
CREATE POLICY "Premium users larger uploads"
ON storage.objects
FOR INSERT
TO authenticated
WITH CHECK (
  bucket_id = 'media'
  AND (
    -- Regular users: 5MB limit
    (
      NOT EXISTS (SELECT 1 FROM subscriptions WHERE user_id = auth.uid() AND tier = 'premium')
      AND octet_length(name) <= 5 * 1024 * 1024
    )
    OR
    -- Premium users: 50MB limit
    EXISTS (SELECT 1 FROM subscriptions WHERE user_id = auth.uid() AND tier = 'premium')
  )
);

// Cache control values for different asset types
export const CACHE_CONTROL = {
  // Avatars: Long cache, versioned via path
  avatar: 'public, max-age=31536000, immutable',  // 1 year

  // User uploads: Moderate cache, may change
  upload: 'public, max-age=86400, stale-while-revalidate=3600',  // 1 day + SWR

  // Temporary files: Short cache
  temporary: 'public, max-age=3600',  // 1 hour

  // Private files: No CDN cache
  private: 'private, no-cache, no-store, must-revalidate'
} as const;

// Apply cache control during upload
async function uploadWithCaching(
  bucket: string,
  path: string,
  file: Buffer,
  cacheType: keyof typeof CACHE_CONTROL
) {
  return supabaseAdmin.storage
    .from(bucket)
    .upload(path, file, {
      cacheControl: CACHE_CONTROL[cacheType],
      contentType: 'image/webp'
    });
}

interface SignedUrlOptions {
  expiresIn: number;
  transform?: TransformOptions;
}

export async function getOptimizedSignedUrl(
  bucket: string,
  path: string,
  options: SignedUrlOptions
): Promise<string> {
  const { expiresIn, transform } = options;

  // For transformed images, use the transform endpoint
  if (transform) {
    const { data, error } = await supabaseAdmin.storage
      .from(bucket)
      .createSignedUrl(path, expiresIn, {
        transform: {
          width: transform.width,
          height: transform.height,
          resize: transform.resize,
          quality: transform.quality,
          format: transform.format
        }
      });

    if (error) throw error;
    return data.signedUrl;
  }

  // Standard signed URL
  const { data, error } = await supabaseAdmin.storage
    .from(bucket)
    .createSignedUrl(path, expiresIn);

  if (error) throw error;
  return data.signedUrl;
}

// Batch signed URLs for gallery views
export async function getBatchSignedUrls(
  bucket: string,
  paths: string[],
  expiresIn = 3600
): Promise<Map<string, string>> {
  const { data, error } = await supabaseAdmin.storage
    .from(bucket)
    .createSignedUrls(paths, expiresIn);

  if (error) throw error;

  const urlMap = new Map<string, string>();
  data.forEach((item) => {
    if (item.signedUrl) {
      urlMap.set(item.path, item.signedUrl);
    }
  });

  return urlMap;
}

// Track storage performance for monitoring
export function trackStorageMetrics(operation: string, startTime: number, success: boolean) {
  const duration = Date.now() - startTime;

  // Log to your preferred monitoring service
  console.log(JSON.stringify({
    type: 'storage_operation',
    operation,
    duration_ms: duration,
    success,
    timestamp: new Date().toISOString()
  }));

  // Alert on slow operations
  if (duration > 5000) {
    console.warn(`Slow storage operation: ${operation} took ${duration}ms`);
  }
}

// Wrapper for monitored uploads
export async function monitoredUpload(
  uploadFn: () => Promise<any>,
  operationName: string
) {
  const start = Date.now();
  try {
    const result = await uploadFn();
    trackStorageMetrics(operationName, start, true);
    return result;
  } catch (error) {
    trackStorageMetrics(operationName, start, false);
    throw error;
  }
}
