CadQuery: Python-Powered Parametric CAD and Its Growing Ecosystem

Introduction

If you’ve ever wanted to create precise 3D models using code instead of clicking through a GUI, CadQuery might be exactly what you’re looking for. It’s a Python-based framework for building parametric 3D CAD models that can be exported to industry-standard formats like STEP, STL, and 3MF.

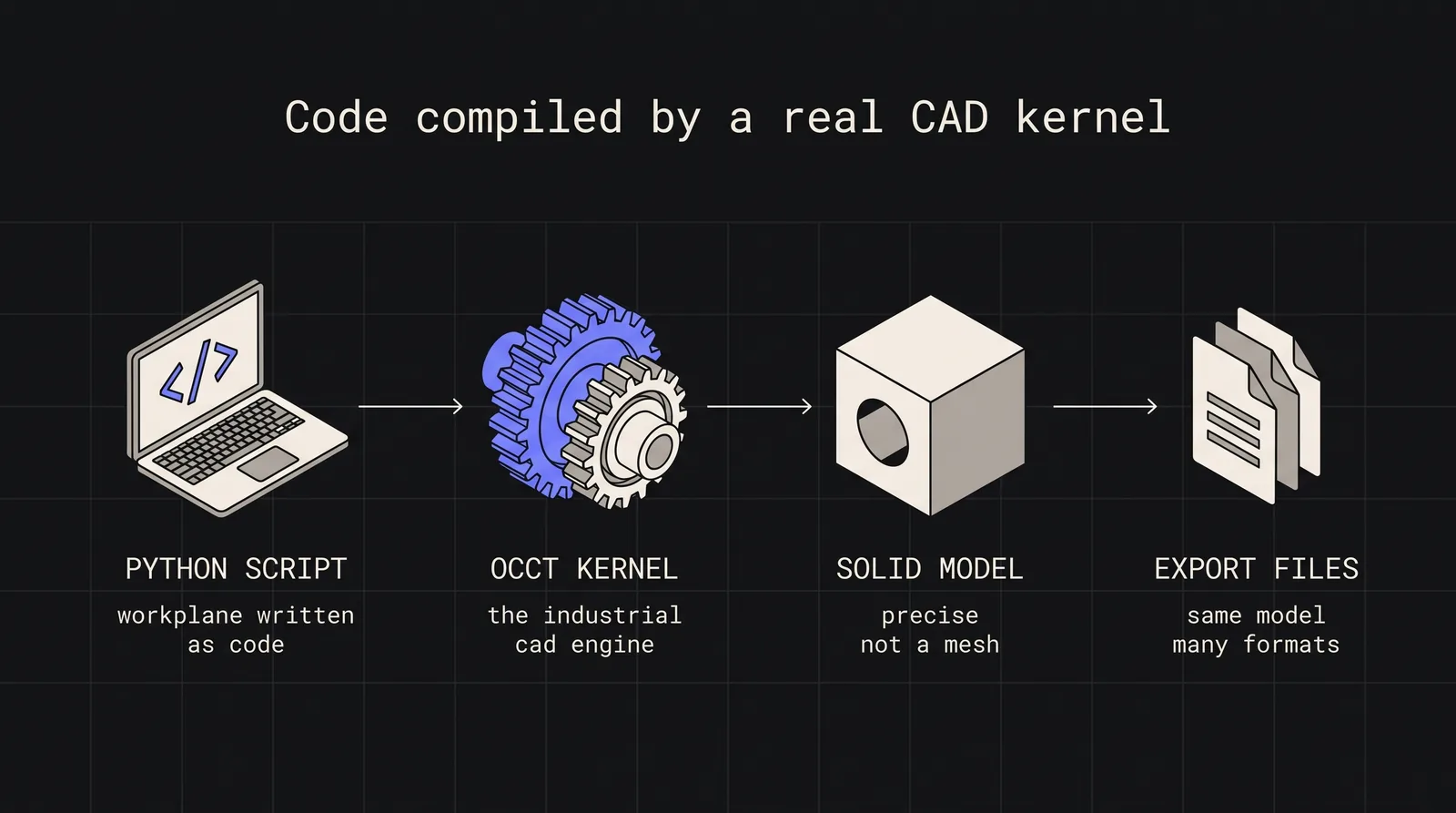

What makes CadQuery stand out is its foundation: it’s built on Open CASCADE Technology (OCCT), the same industrial-grade CAD kernel used by FreeCAD and other professional tools. This gives it capabilities far beyond simple mesh-based modeling.

Why CadQuery Over OpenSCAD?

Many developers start with OpenSCAD for programmatic CAD, but CadQuery offers several advantages:

• Standard Python: Use your favorite IDE, debugger, and all Python libraries
• Powerful CAD Kernel: OCCT supports NURBS, splines, surface sewing, and STL repair
• Lossless Exports: Native STEP format support preserves precision
• Faster Builds: Complex geometries compile significantly faster

Getting Started

Installation is straightforward with conda (recommended) or pip:

# Using conda/mamba (recommended)
mamba install -c conda-forge cadquery

# Or using pip
pip install cadquery

How CadQuery Works

CadQuery uses a fluent API that reads almost like natural language. Here’s a simple example creating a plate with a hole:

import cadquery as cq

thickness = 0.5
width = 2.0

result = (
    cq.Workplane("front")
    .box(width, width, thickness)
    .faces(">Z")
    .hole(thickness)
)

# Export to STEP
cq.exporters.export(result, "plate.step")

The key concept is the Workplane - a 2D plane in 3D space where you sketch and build features. You chain operations together, selecting faces, edges, or vertices to position new features relative to existing geometry.

Here’s a more complex parametric example:

import cadquery as cq

# Parameters - change these to customize the model
length = 30.0
height = 40.0
bearing_diam = 22.0
thickness = 10.0
padding = 8.0

result = (
    cq.Workplane("XY")
    .box(length, height, thickness)
    .faces(">Z")
    .workplane()
    .hole(bearing_diam)
    .faces(">Z")
    .workplane()
    .rect(length - padding, height - padding, forConstruction=True)
    .vertices()
    .cboreHole(2.4, 4.4, 2.1)  # Counterbored mounting holes
)

The CadQuery Ecosystem

One of CadQuery’s greatest strengths is its vibrant ecosystem. Here’s a tour of the most useful tools:

Editors and IDEs

Extensions and Plugins

cq_warehouse - Adds parametric parts generated on demand:

from cq_warehouse.fastener import SocketHeadCapScrew

screw = SocketHeadCapScrew(size="M6-1", length=20)

cq_gears - Generate various gear types:

from cq_gears import SpurGear

gear = SpurGear(module=1.0, teeth_number=20, width=5.0)

cqMore - Additional fundamental operations for complex geometries.

cq-kit - Utility classes extending core capabilities.

Domain-Specific Libraries

• cq-electronics: Models of electronic boards and components
• cq-gridfinity: Generate Gridfinity-compatible storage solutions
• cqterrain: Wargaming terrain pieces
• metric_threads: Internal and external thread generation

CAM and Manufacturing

ocp-freecad-cam bridges the gap between design and manufacturing by integrating FreeCAD’s CAM capabilities with CadQuery models.

Command Line Tools

cq-cli lets you execute CadQuery scripts and convert outputs from the command line - perfect for CI/CD pipelines:

cq-cli -i model.py -o model.step
cq-cli -i model.py -o model.stl

Build123d: The Next Evolution

Worth mentioning is Build123d, a fork that evolved from CadQuery into a more “Pythonic” framework. Key differences:

• Uses Python context managers (with blocks) instead of method chaining
• Explicit 1D, 2D, and 3D geometry classes
• Better IDE support with proper type hints
• Extensible through subclassing rather than monkey-patching

from build123d import *

with BuildPart() as part:
    Box(10, 10, 5)
    with Locations((0, 0, 5)):
        Hole(2)

Both frameworks share the OCP (Open CASCADE Python) wrapper, so objects can be interchanged between them.

AI Integration: Text-to-CadQuery

An exciting development in 2025-2026 is the emergence of Text-to-CadQuery - using large language models to generate CadQuery scripts from natural language descriptions. Researchers have fine-tuned models on 170,000+ CadQuery annotations, achieving 69.3% exact match accuracy.

This opens possibilities like:

“Create a bracket with two mounting holes spaced 50mm apart and a central slot for cable routing”

And getting working CadQuery code in return.

When to Use CadQuery

CadQuery excels for:

• Parametric models where dimensions need to change
• Automated part generation in manufacturing pipelines
• Precise engineering requiring STEP format exports
• Version-controlled designs (CAD files as code in Git)
• Integration with Python tools (NumPy, SciPy, data analysis)

It’s less suited for:

• Artistic/organic modeling (use Blender instead)
• Quick one-off designs (traditional CAD might be faster)
• Teams without Python experience

Resources

• CadQuery Documentation
• Awesome CadQuery - Curated list of resources
• CadQuery GitHub
• Build123d Documentation
• Discord Community - Shared with Build123d

Conclusion

CadQuery represents a paradigm shift in how we approach CAD - treating 3D models as code rather than files. With its powerful OCCT foundation, growing ecosystem of tools, and Python’s flexibility, it’s becoming an increasingly attractive option for engineers, makers, and developers who want precise control over their designs.

Whether you’re generating thousands of parametric parts for manufacturing, creating custom 3D printable designs, or just prefer code over clicking, CadQuery and its ecosystem have matured into a serious toolset worth exploring.
